Figure 1

Download original image

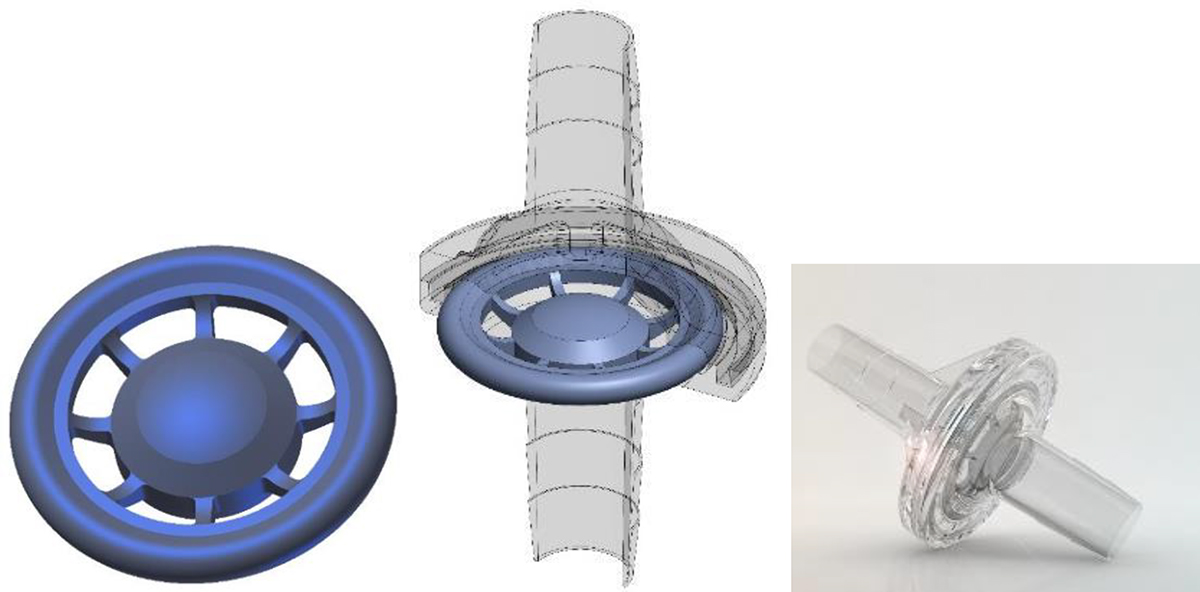

A: detailed depiction of the valve design; a central plug connected by rods equidistant to an outer circumference sized to equalize the line passage area, resulting in a smaller rod passage area and inlet and outlet connections 3/8”. This design, resembling a cartwheel, inspired the piece’s name. B: SafeCEC® drawing showing the housing profile. C: Illustrative image from SafeCEC.
